Product Description
Radium Triple Pump Fuel System - 09-15 CTS-V

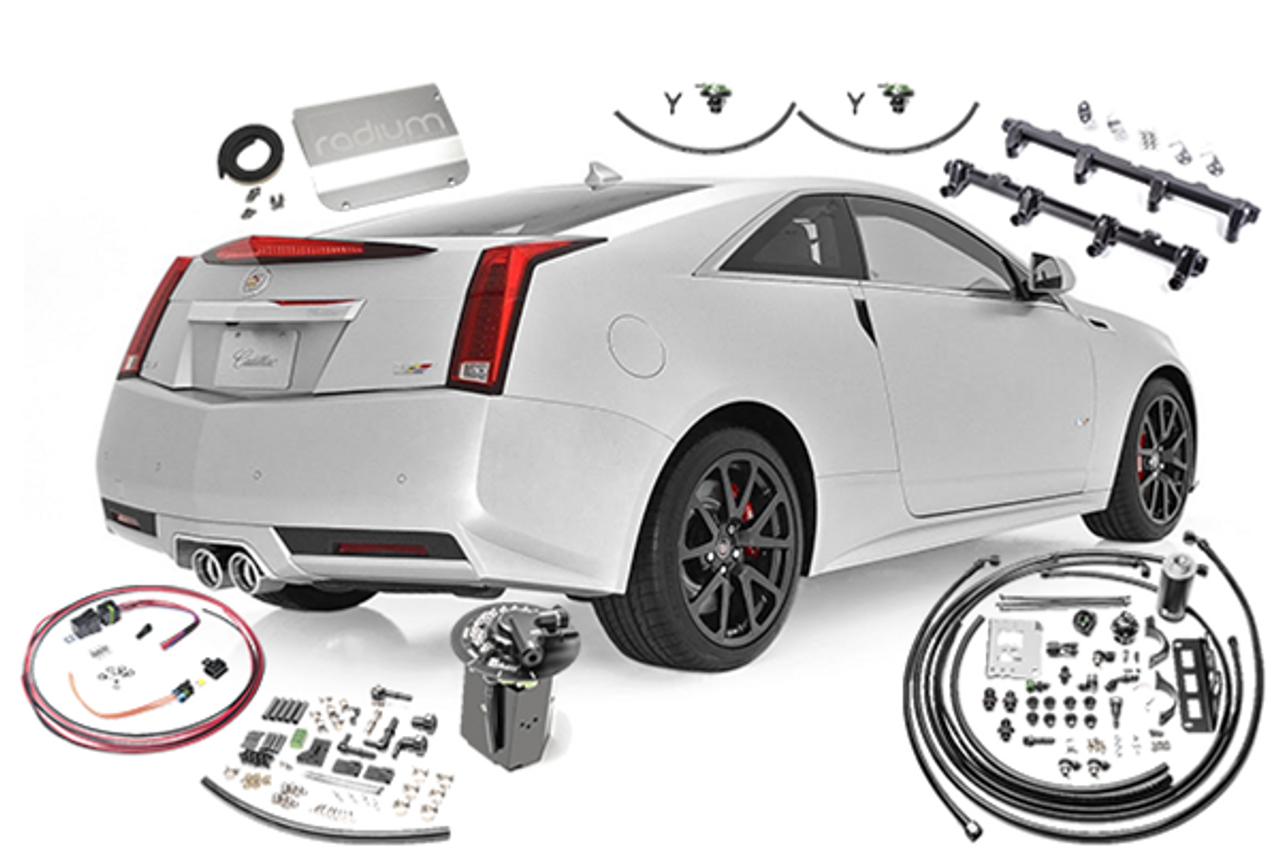

KIT INCLUDES;
- Radium 20-1322 Fuel Hanger for Ti Auto 267 / 274 / 285 Fuel Pumps
- Radium 20-1325-05 Plumbing Kit w. Microglass Filter
- Radium 20-0362 LSA Fuel Rails
- Radium 20-0776 Pulse Dampeners for L & R Fuel rails
- Radium 20-0835 Fuel Pump Access Cover
OPTIONAL;
- Include Ti Auto 274 or Ti Auto 285 Fuel Pumps (Qty: 3)
- Include Radium DIY Fuel Pump Wiring Kit
For installation documents select the specific part numbers HERE
This comprehensive kit includes all the Radium Engineering components required to construct a high performance fuel delivery system for the second generation Cadillac CTS-V.
Normally the CTS-V fuel tank would need to be dropped. With the supplied access cover and some sheet metal cutting the fuel pump can be easily serviced quickly. More details on 20-0835 can be found HERE.
The in-tank fuel hanger surge tank replaces the factory unit and can be configured with a variety of different fuel pump options. More details on the 20-132X fuel hanger can be found HERE.

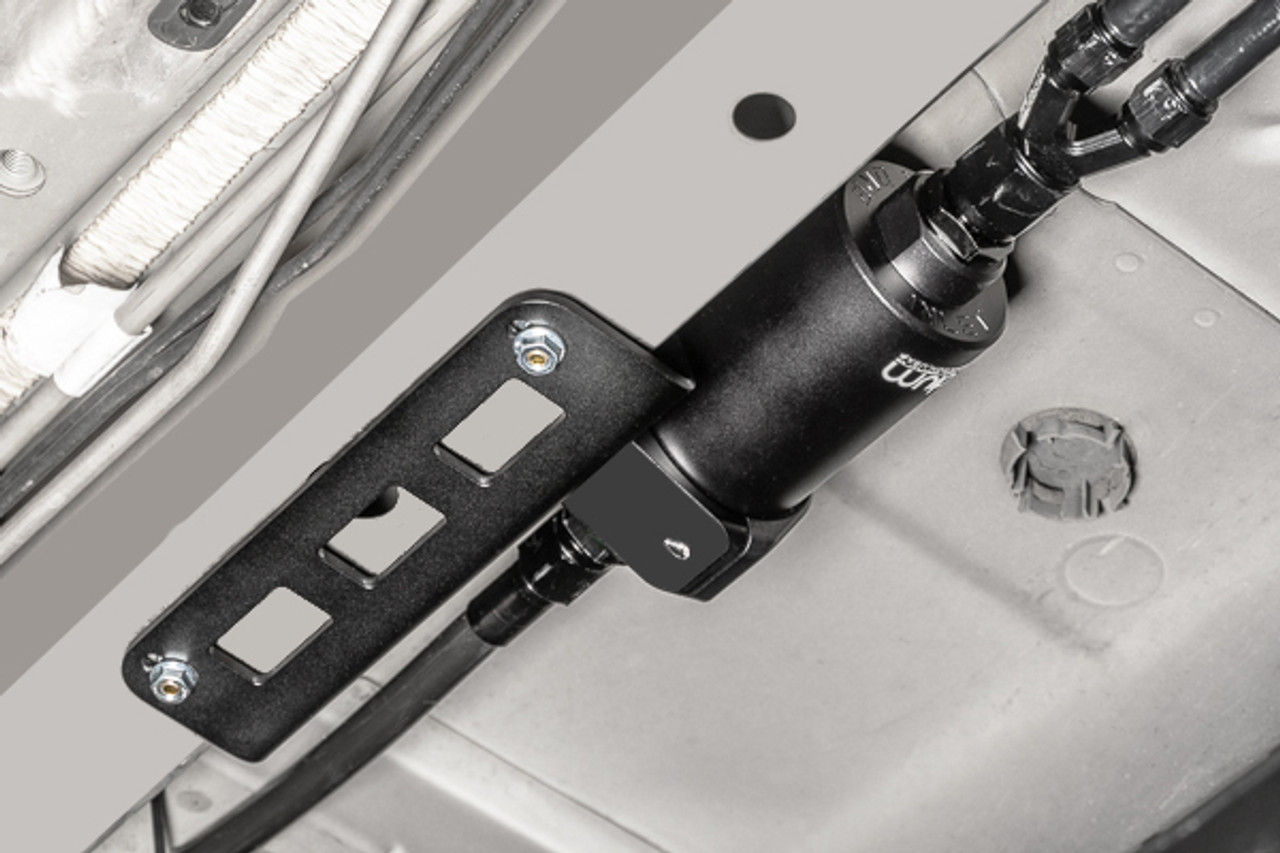

A new high flow fuel filter, fuel lines, AN fittings, and an undercarriage fuel line retainer replace all OEM components. More details on the 20-1325-0X fuel hanger plumbing kits can be found HERE.
Fuel enters through a 8AN fitting on the inlet of a high flow LSA fuel rail. More details on the 20-0362 fuel rails can be found HERE. NOTE: Fuel Injectors are required.
Unwanted pressure spikes are controlled through fuel pulse dampers. More details on the 20-0776 FPD-R can be found HERE.
The included FPR regulates fuel pressure with boost pressure at a 1:1 ratio. More details on the 20-1623-00 DMR-RA can be found HERE.
The DMR-RA is monitored and adjusted using a 0-100psi gauge. More details regarding the 20-0029 gauge can be found HERE.
COMPATIBLE FUEL INJECTORS ARE ALL THAT IS REQUIRED.
