Product Description

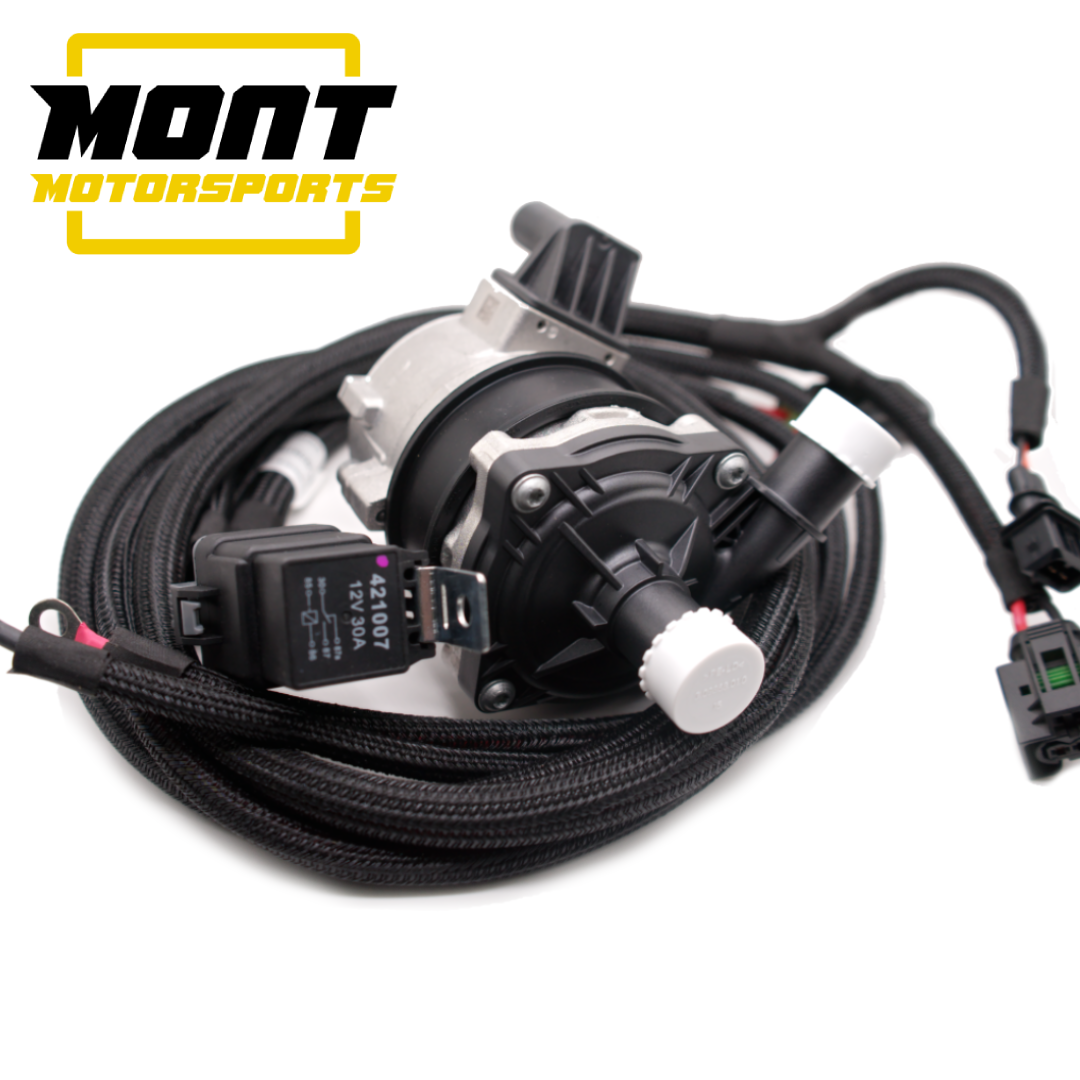

Pierburg CWA150 HX Coolant Pump Kit

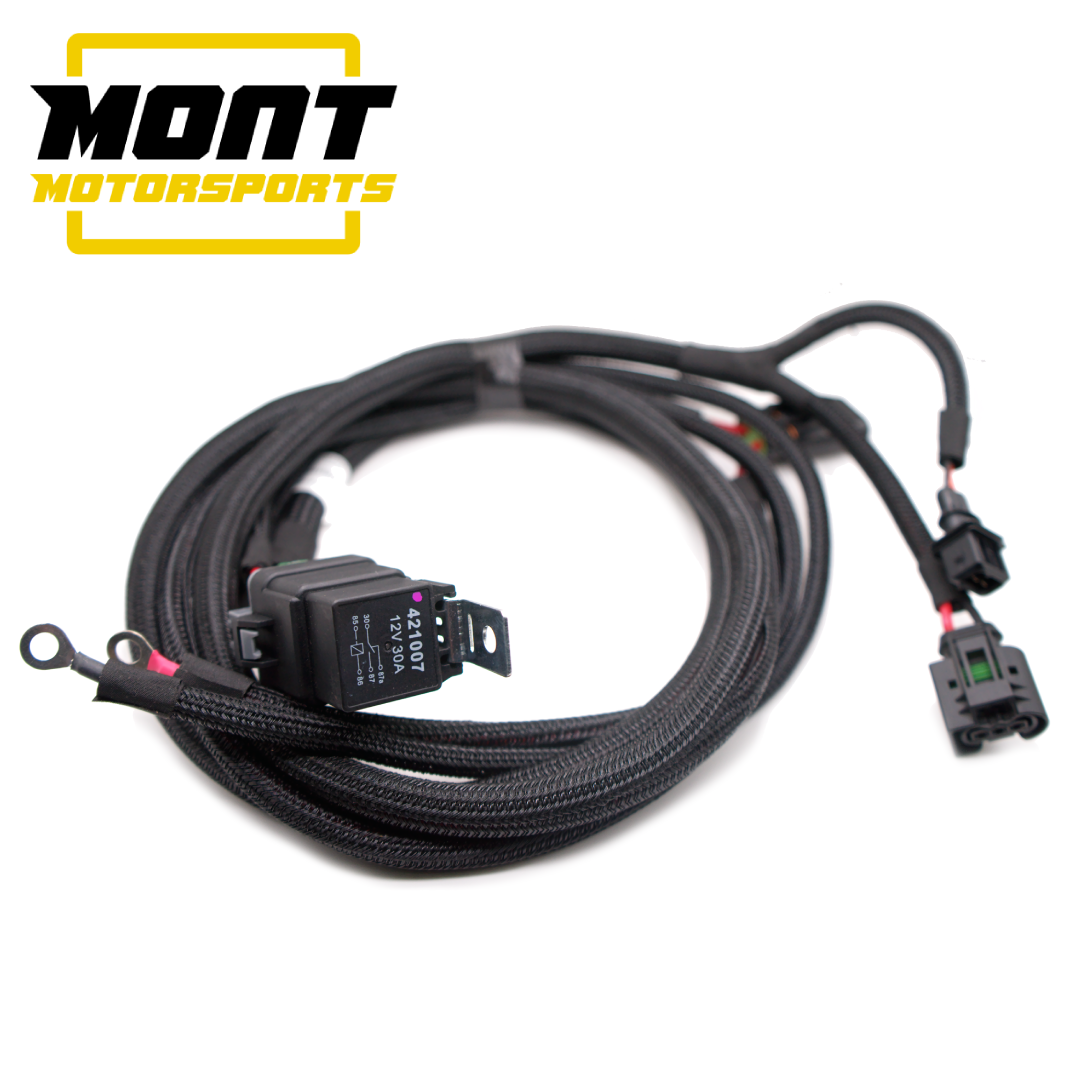

Includes Pigtail with EV1 Male Connector
Pierburg CWA150The CWA150 is basically the high pressure variant of the CWA100-3 we are also offering.The dimensions and the weight are nearly the same.New are the freshly designed impeller and impeller housing to accommodate for the higher differential pressures.It is suitable for various systems in electrical vehicles and anything else that profits from that higher pressure capability
Specifications:
- Name: "Pierburg CWA150"
- Operation voltage: 9-16 volts
- Weight: approx. 1.0 kg
- Current consumption: 15A max. / (I < 100mA in standby mode)
- Nominal diff. pressure: ≥ 1.40 bar *
- Flow rate: approx. 25 l/min @ 1.40bar / 40 l/min @ 0.80bar
- Speed: approx. 6692 rpm
- Temperature range: -40°C – 80°C (water) / -40°C – 100°C (ambient)
- Protection: IP 54
- Inlet / outlet nozzle removable / Four possible positions
- Inlet/Outlet Size 3/4 inch
- 30 day warranty from date of purchase
Mont Motorsports does not offer warranties on any electronics
