Product Description
Quick Overview
- Flow Up To 400 HP
- Anodized Billet Aluminum Nitrous Plate
- 400+HP Solenoids
- E85 Compatible With Different Jetting
- All Hardware, Electrical, and Jetting Included
- Includes Jetting for 50-100-150-200 HP
Details
Flow Up To 400HP. This system comes out of the box with everything you need to spray 200HP, but can spray up to 400HP with additional jetting.
Superior Atomization. This 78mm injection plate has 6 specially designed nitrous and fuel discharge ports that completely saturate the air intake charge with the best atomized mixture possible. For higher horsepower levels proper distribution into the air stream is critical for even cylinder to cylinder distribution.

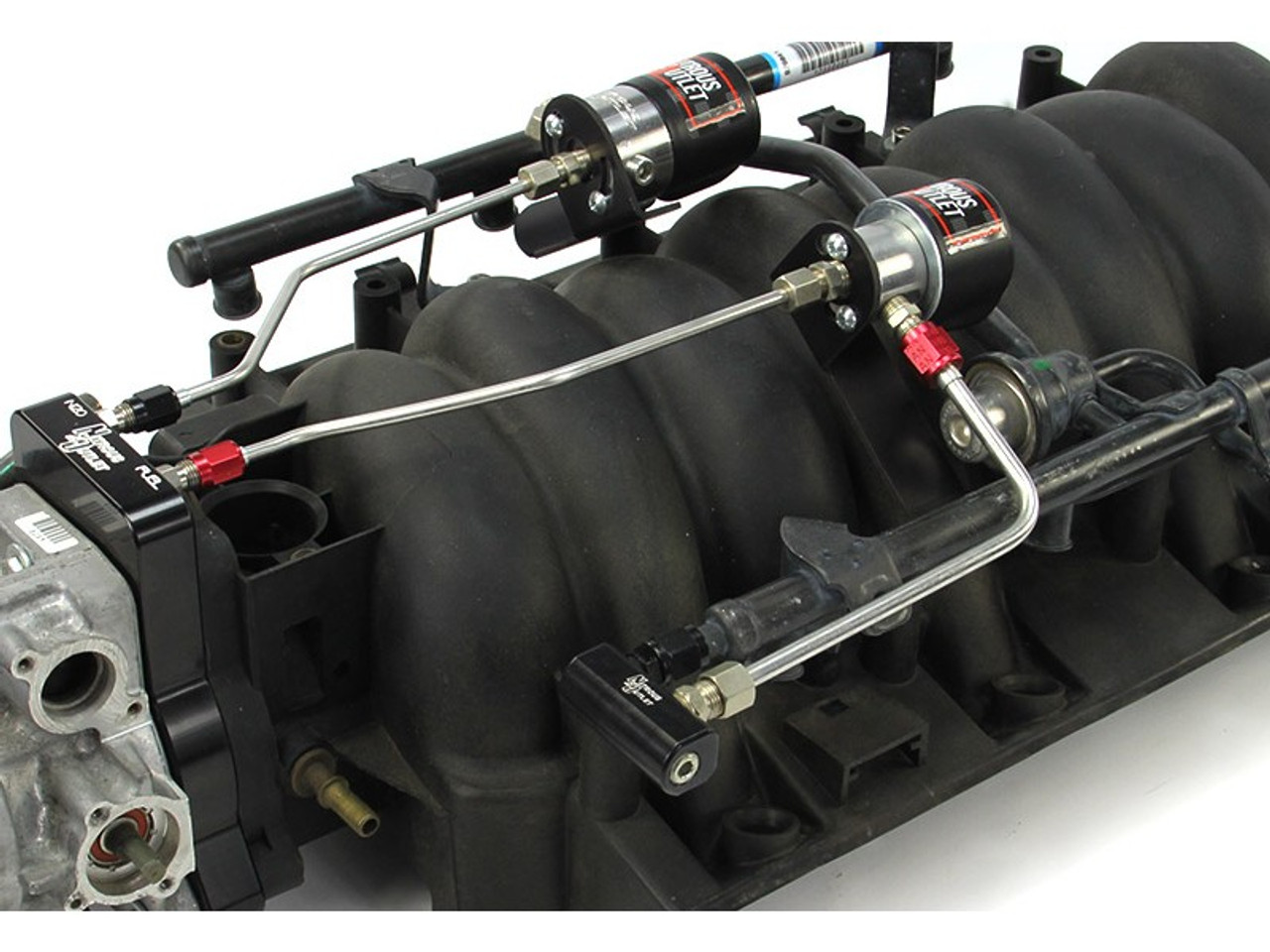

Wet Nitrous Plate. This system includes a billet aluminum wet nitrous plate to fit 97-04 Corvette 78mm intakes and is capable of flowing up to 400 HP of nitrous. Each billet plate has a black anodized finish with a CNC engraved logo and fuel/nitrous labels.
Vehicle Specific. The Nitrous Outlet Vehicle Specific Nitrous system is the safest, best fitting, and most tuner friendly system available.This system is designed specifically for the 97-04 Corvette Intake with a 78mm throttle body, including vehicle specific solenoid brackets, pre-bent hardline, and application specific hardware for the best fitment and cleanest install on the market.
Complete System. This system includes all of the necessary components; billet aluminum nitrous plate, 50-200 HP jetting, hardware, and wiring to properly install a wet nitrous system on your vehicle.
Wide Open Throttle Activation. This system includes a wide open throttle (WOT) switch that only allows the system to be activated when the motor is at full throttle. This safety feature will help prevent engine damage and lean spikes.
Application. This system is specifically designed to fit stock 97-04 Corvette 78mm intake manifolds. This system requires a spacer for the power steering reservoir for proper fitment.
*NOTE: DOES NOT FIT C5 with factory return style fuel system.
Click here for 97-04 Corvette P/S reservoir spacer, part # 00-42000.
Additional Information
| SKU | 00-10122-78 |
|---|---|
| Number of Stages | Single Stage |
| Max Flow (Per Stage) | 400 |
| Dry/Wet | Wet |
| Number of Solenoids | 2 |
| Nitrous Solenoid Size | .122 Orifice |
| Fuel Solenoid Size | .187 Orifice |
| Relay and Harness Included? | Yes |
| Fuel Adapter Fitting Included? | Yes |
| Included Jetting (in Horsepower) | 50-100-150-200 |
| Fuel Pressure | 45-55 PSI |
| Single Or Dual Stage | N/A |
| Type Of Fuel Rail | Stock Fuel Rails |
| Solenoid Bracket(s) | Vehicle Specific |
| Main Feed Line Size | 4AN |
| Hard or Soft Line (From Solenoids) | Hard Line |
| Vehicle Make | GM |
| Vehicle Model | Corvette |
| Vehicle Year | 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 |
