Product Description

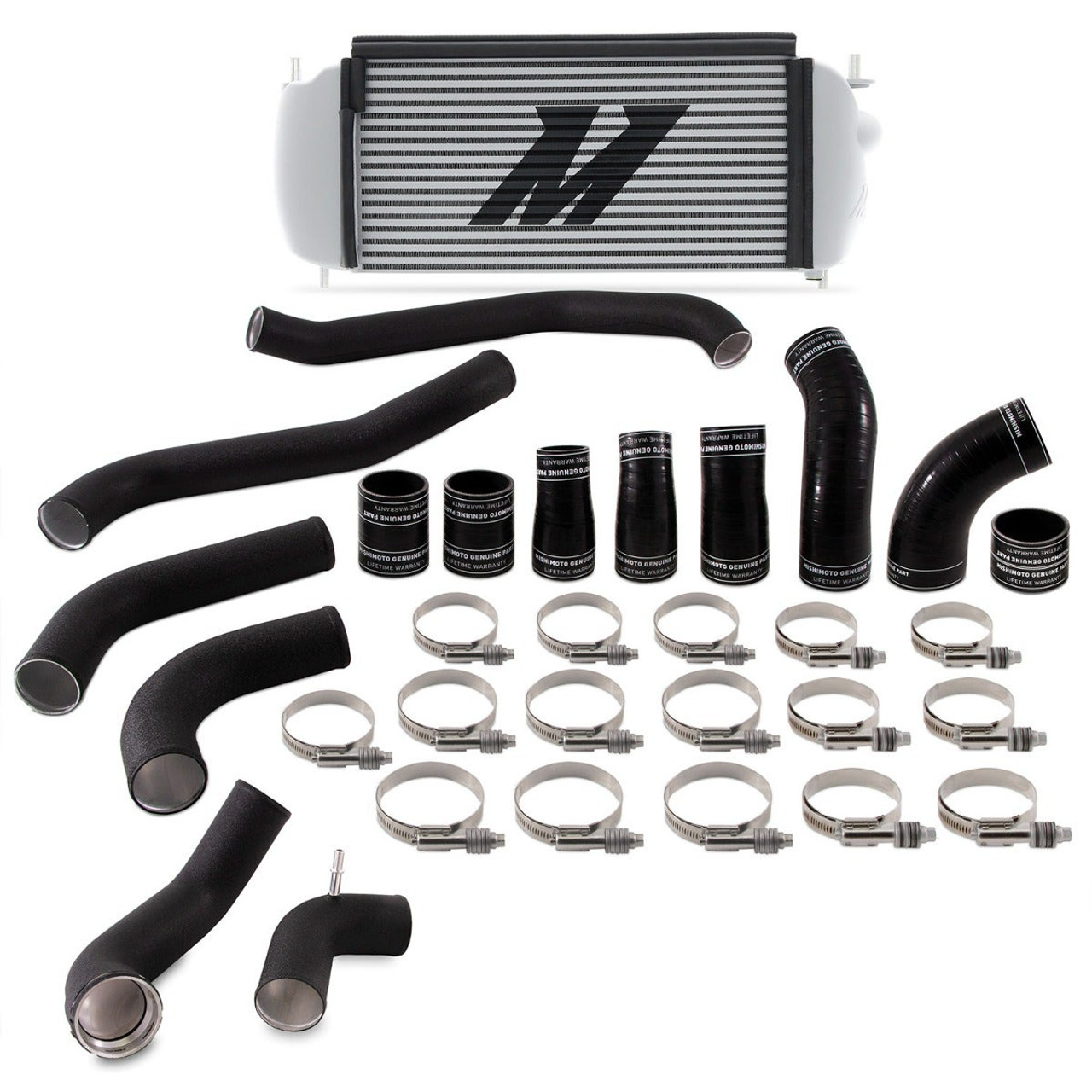

Mishimoto Performance Intercooler Kit - Silver Intercooler / Black Pipes - 17-20 Raptor / 21-24 Raptor
- Direct fit for 2017-2021 Ford F-150 3.5L EcoBoost
- Increased intercooler pipe volume allows for better flow and power potential
- Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
- Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
- Includes Mishimoto Silicone Boots with DuraCore™ technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
- 10°F (5.5°C) reduction in intake air temp
- 77% increase in intercooler internal core volume
- 163% increase in external fin surface area
- All-aluminum, TIG-welded construction
- Fits with stock intercooler fans without modification
- Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
- Mishimoto Lifetime Warranty
Mishimoto has developed a direct-fit 2017+ 3.5L F-150 EcoBoost Intercooler & Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor.

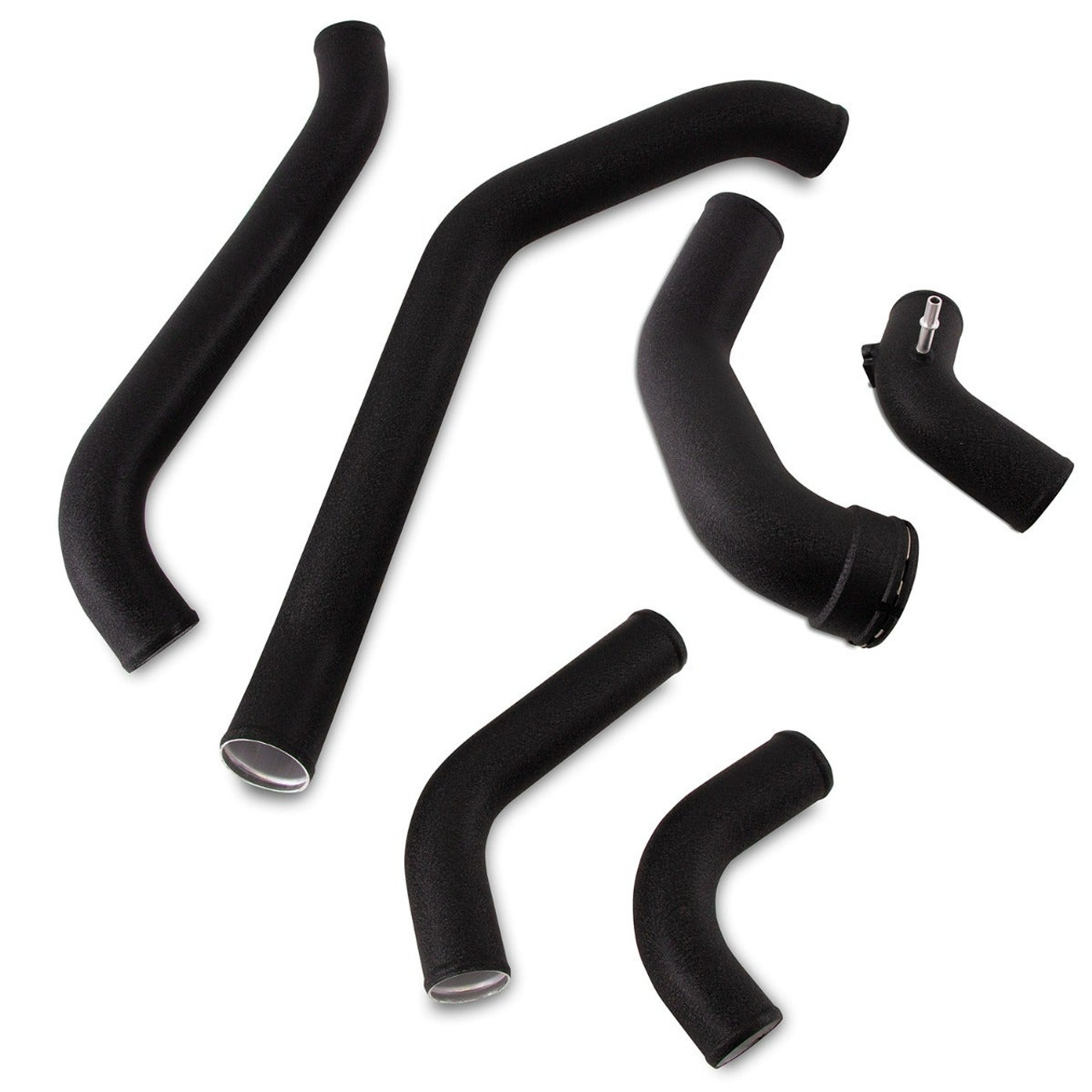

Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore™ technology. The larger volume of our pipes allows your 2017+ 3.5L EcoBoost to breathe free and make the most of its two turbochargers. DuraCore™ boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination.

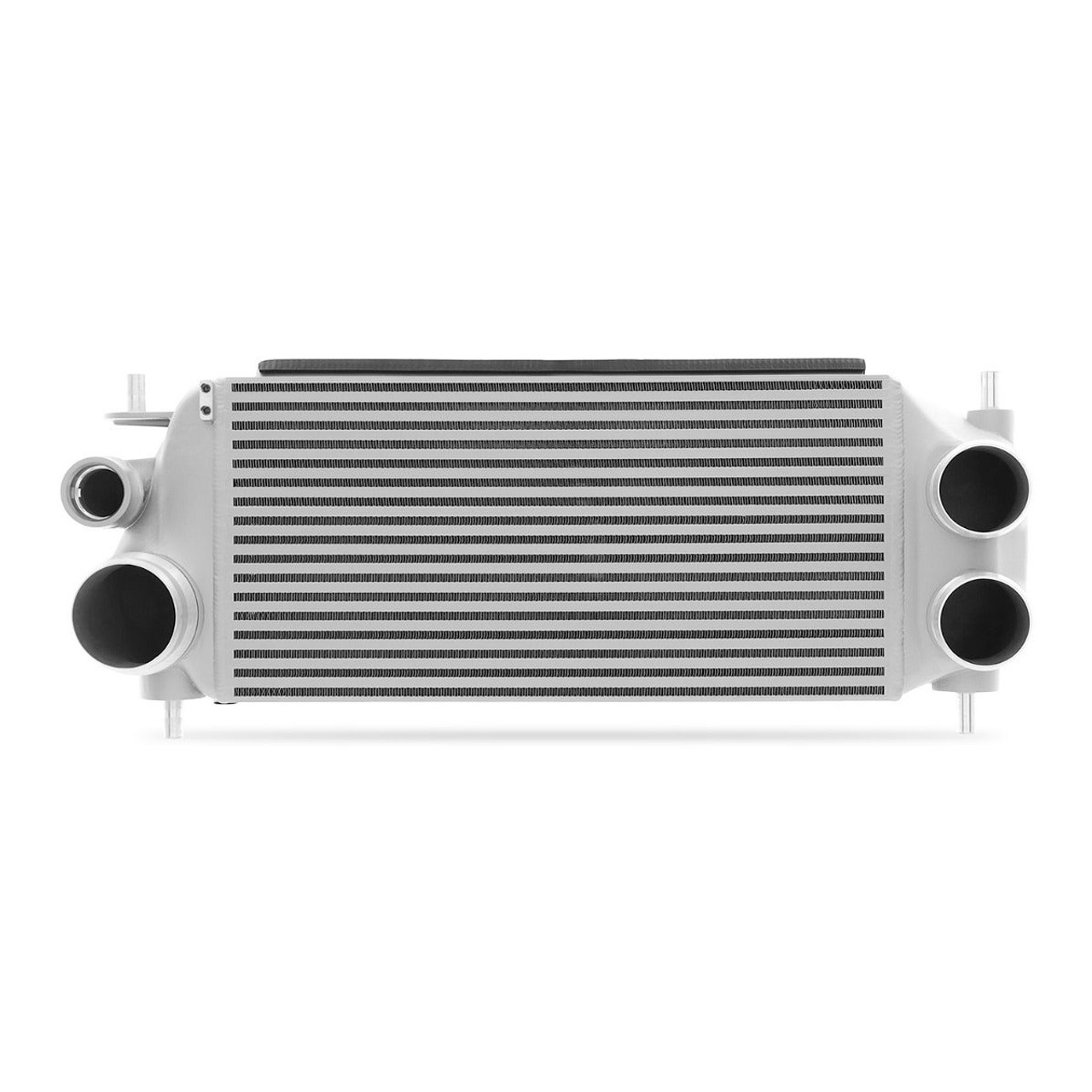

Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77% over stock and external fin surface area by 163%. With cast end tanks and a bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock.
This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2017 3.5L F-150 EcoBoost Intercooler & Pipe kit is backed by our Lifetime Warranty.
| Applications | 2017+ Ford F-150 3.5L V6 EcoBoost 2017+ Ford Raptor 3.5L V6 EcoBoost |
|---|---|
| Engine Codes | 3.5L V6 EcoBoost |
| Maximum Recommended Boost Pressure (PSI) | 50 |
| Overall Length (in) | 29 |
| Overall Height (in) | 9.5 |
| Overall Width (in) | 7 |
| Core Type | Bar-and-Plate |
| Core Thickness (in) | 4.7 |
| Core Length (in) | 19.6 |
| Core Height (in) | 9.4 |
| Inlet (in) | 2.5 |
| Outlet (in) | 3 |
| Installation Notes | 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). |
