Product Description

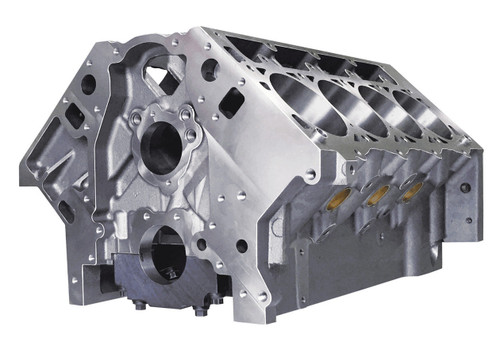

Dart SHP LS Next Bare Block - 4.000" Bore
FREIGHT SHIPPING NOT INCLUDED - YOU WILL BE CONTACTED WITH THE BALANCE FOR THE FREIGHT SHIPPING AFTER CHECKOUT
Dart LS Next Cast Iron Bare Blocks
Dart LS Next cast iron bare blocks integrate the robust heritage of a traditional Chevy small block with the performance potential of the late model LS engine architecture. The blocks are designed to rectify some of the former LS's more noticeable shortcomings on the bottom end—while still supporting high-flow and efficient cylinder heads developed for Gen III and IV platforms. They're available in multiple engine block styles, including stock/OEM standard deck and aftermarket. Dart LS Next blocks are back and better than ever!
Highlight features of the LS Next cast iron bare blocks include:
* Cast with premium cast iron alloy
* Conventional style 4-bolt steel main caps
* Full main webbing for maximum bottom-end strength
* Extended cylinder barrels at the bottom to provide greater piston support for all combinations
* Extra-thick Siamese cylinder bores
* Blind head bolt holes don't go through into the water jacket
* Provision for oil restrictors in the lifter valley
* Revised low-restriction priority main oiling system
* Pro-Stock/Pro-Mod big block style stepped main oil galley
* External oil filter (must be used with stock or aftermarket oil pumps)
* Dual starter mounts
* Expanded water jacket on #1 cylinder for additional cooling capacity
* LSX-style lifter bosses and dog bone provision are provided
Designed for high performance and medium duty applications, the SHP LS Next Block is the ideal starting point for hot rodders, drag racers, circle track competitors, off-roaders, and high performance marine enthusiasts.
• Dart priority main oiling system with provisions for stock oil filter mounting.
• Siamesed cylinder bores with thick walls.
• Cylinder barrels extended .375” at the bottom of the bores.
• Thick decks ensure reliable head gasket seal.
• Blind head bolt holes.
• 6 bolt per cylinder capability.
• Scalloped water jackets increase flow around cylinders for better cooling.
• Clearanced up to 4.100” stroke w/ steel rods.
• Splayed outer bolts on middle main bearing caps.
• Provisions for LSX roller lifters and cam.
• Uses OE front and rear covers.
• All OE bolt holes for starter, water pump, etc.
• Parts kit sold separately (PN: 32000018).
